FORLAND TRUCKS

FORLAND Business Unit of FOTON Motor is China's largest truck manufacturer, including two production plants in Zhucheng and Changsha. It is a well-rounded company integrating the function of R & D, production, sales and services

FORLAND Business Unit is keeping the same pace with the world. Based on the advantage of maturity in technology, the plant makes continuous efforts in products upgrading and innovation, as well as in the improvement of the essence of the products; meanwhile by means of globally advanced chassis technology and engine resource, the competence of FORLAND products in the overseas markets is ensured and improved.



OUR FOLAND PRODUCTS

PRODUCT SPECIFICATIONS



MODEL BJ102TS BJ103TS BJ105TS BJ1043V9JEA-A1 BJ106TS BJ1061VCJEA-F1 BJ1099VEJED-F1

Rated Playload (Kg)

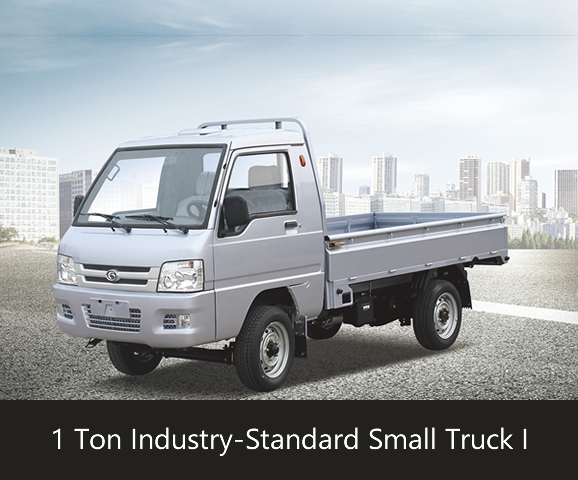

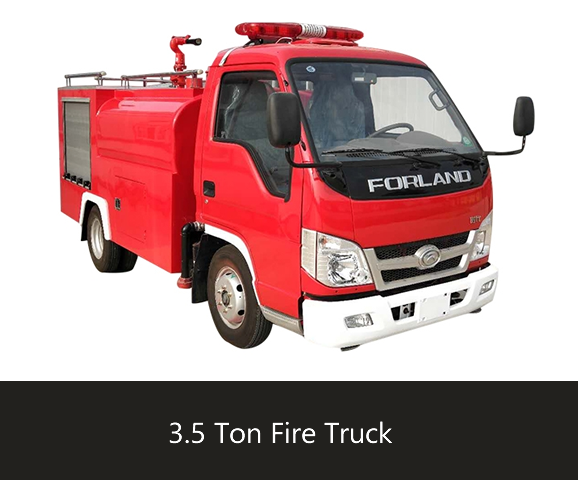

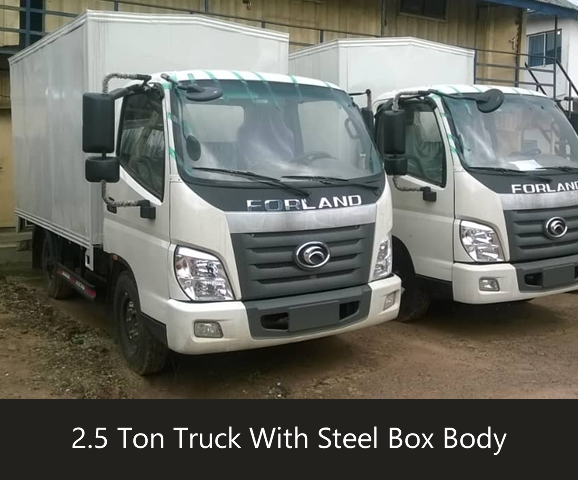

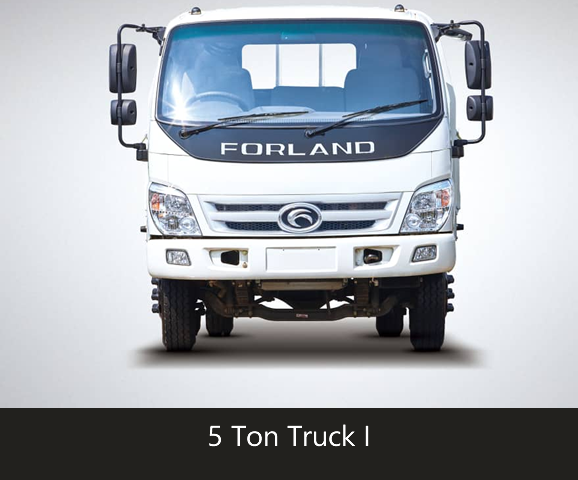

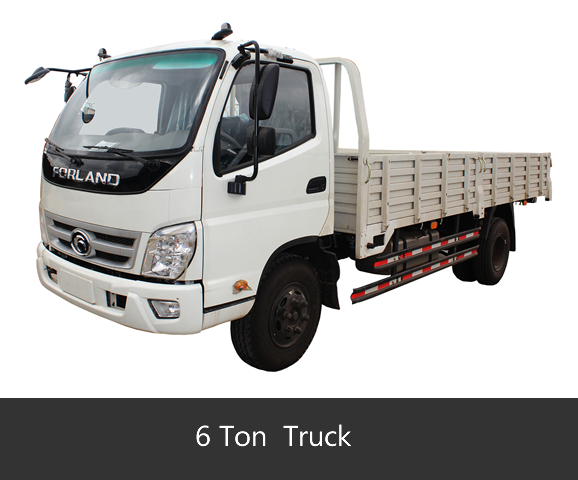

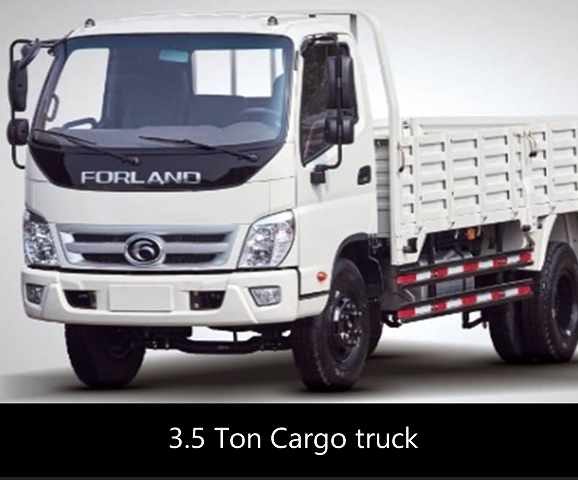

1 TON 2.5 TONS 3.5 TONS 4 TONS 5 TONS 6 TONS 6 TONS

Bronchure

Download - - Download - Download Download

Overall Dimension (L x W x H)mm

4340 x 1510 x 1850 4810 x 1700 x 2140 6500 x 2000 x 2260 6110×2115×2345 7150 x 2200 x 2692 6977×2205×2385 7517×2205×2385

Inner Dimension of the cargo body (L x W x H)mm

2700x 1410 x 320 3070 x 1610 x 360 4250 x 1900 x 360 4230×2000×400 5150 x 2060 x 550 5060×2060×550 5600×2060×550

Cabin Width (mm)

1475 single row 1695 single row 1780 single row L1995 Single 2100 single row L1995 Single L1995 Single

Persons in cab (persons)

2 2 2 2 2 2 2

Driving type

4 x 2 4 x 2 4 x 2 4×2 4 x 2 4 x 2 4 x 2

Wheel Base

2370 2600 3360 3360 3800 3800 4200

Wheel Track (front/rear)mm

1260/1260 1455/1360 1530/ 1485 1690/1590 1650/1900 1630/1630 1630/1630

Max Speed (Km/h)

90 100 120 95 110 95 95

Engine Model

LJ465Q3-IAEI BJ493ZQ (ISUZU technology) BJ4932LOI (ISUZU technology) 4D120-20 Cummins 3.8 4D130-33 4D130-33

Engine Type

Four-cylinder, in-line, mechanic ally adjusted wheel rocker, elect ronically controlled fuel injection, electronically controlled ignition.

Four cylinder, in-line, water- cooling, DI, four-stroke, Supercharger, Diesel Engine.

Four cylinder, in-line, water-
cooling, DI, four-stroke,
Supercharger, Diesel Engine.
In-line, four-cylinder, water-cooled, intercooled pressurized,direct injection Four-cylinder, in-line water-
cooling, DI, Four-stroke.
Electronic control VE pump,
diesel engine.
In-line, four-cylinder, water-cooled, intercooled pressurized,direct injection In-line, four-cylinder, water-cooled, intercooled pressurized,direct injection

Piston Displacement (L)

1.0 5 1 2.771 2.771 4.214 3.8 4.214 4.214

Rated Power (KW(r/mln))

38/3600(52HP ) 68/3600 (91HP) 80/3600 (107HP) 90/2600 105/2600 (140HP) 96/2600 96/2600

Transmission Model

MR508A Machine, LC5T88 Machine, 5T88 6TS55 Machine, 6T46 6TS55 6TS55

Rear Axle Main Ratio

6.833 5.125 5.375 4T/4.875 4.875 4T/4.875 4T/4.875

Steering Gear

Mechanical Power Steering Hydraulic Steering Power Steering Power Steering Power steering Power steering

Brake System Type

Hydraulic Hydraulic Hydraulic Air brake,drum Pneumatic Air brake,drum Air brake,drum

Wheel and Tyre Size

175/70R14LT 7.00 R16/7.00 R16 7.00 -16/7.00 - 16 7.50R16/6+1 8.25 -16/8.25 - 16 8.25R16/6+1 8.25R16/6+1

Basic/Optical Instruments

Warmer, Radio, AC AC, Warmer, Radio, Spare wheel, Adjustable steering
wheel
AC, Warmer, Radio, Spare wheel, Adjustable steering
wheel
AC, Warmer, Spare wheel, Air deflector, Adjustable steering
wheel, Loading sensing pressure proportioning valve, Exhaust brake
AC, Warmer, Radio, Spare wheel, Adjustable steering
wheel
AC, Warmer, Spare wheel, Air deflector, Adjustable steering
wheel, Loading sensing pressure proportioning valve, Exhaust brake, Loading sensing pressure proportioning valve
AC, Warmer, Spare wheel, Air deflector, Adjustable steering
wheel, Loading sensing pressure proportioning valve, Exhaust brake, Loading sensing pressure proportioning valve
